VS400 VIBRATO

Sleek and comfortable the VS400 combines elements from both the classic VS100N vibrato and the innovative VSVG vibrato to create a contemporary design that sounds and feels amazing.

Taking the classic VS100N stainless steel saddle famous for their comfortable feel and versatility, the VS400’s saddles lock down onto the two pivot “Wilkinson Wave” hardened steel base plate, its precision machined knife-edges offering an ultra smooth feel and perfect return to pitch.

The VS400’s steel sustain block utilises the stagger drill pattern developed by Trev Wilkinson for the VSVG vibrato, this unique string hole pattern allows every string to have a more consistent angle over the intonation point of each saddle which greatly aids tuning stability.

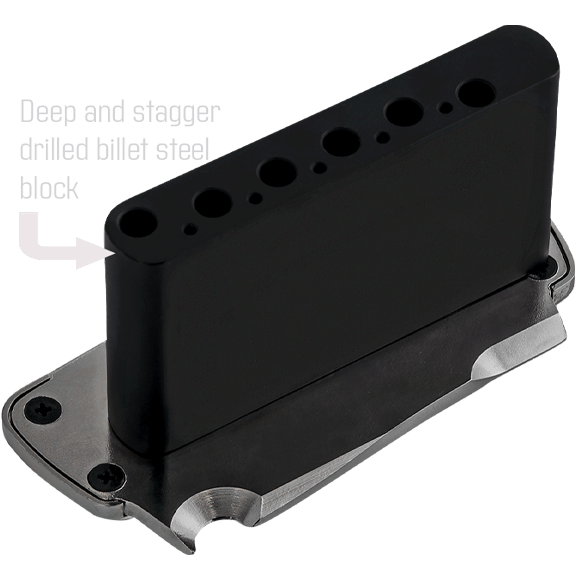

DEEP DRILLED BLOCK

Tuning stability is further aided by deep drilling the sustain block where each strings anchor point is deeper in the block than a vintage style vibrato, this process means less string windings are held in the block than a vintage unit so less room for the string to stretch, and greater stability without sacrificing tone or sustain.

The push in vibrato arm completes the VS400 unit, this slides into a delrin sleeve inserted into the sustain block, with rear block tension adjustment for perfect feel.

VS400 VARIANTS

The VS400 is also available in three other variants that utilise Wilkinson unique innovations

VS400V
Bent Steel Saddles, Stagger/Deep drilled block, 2 pivot wave knife edge.

VSV400
Classic VS100 saddles, Stagger/Deep drilled block, 5 + 1 knife edge.

VSV400V
Bent Steel Saddles, Stagger/Deep drilled block, 5 + 1 knife edge.

SPECIFICATION

Model VS400 Pro Series
Finish Chrome, Gold
Block Material Billet Steel
Saddle Material Stainless Steel
String Spacing 10.80mm
Arm Push In With Traditional Tip
